Dr. Max 5800SBEA
Auftragsfertigung
Auftragsfertigung
Artikelnummer
1-021417-0812-201
Auftragsfertigung

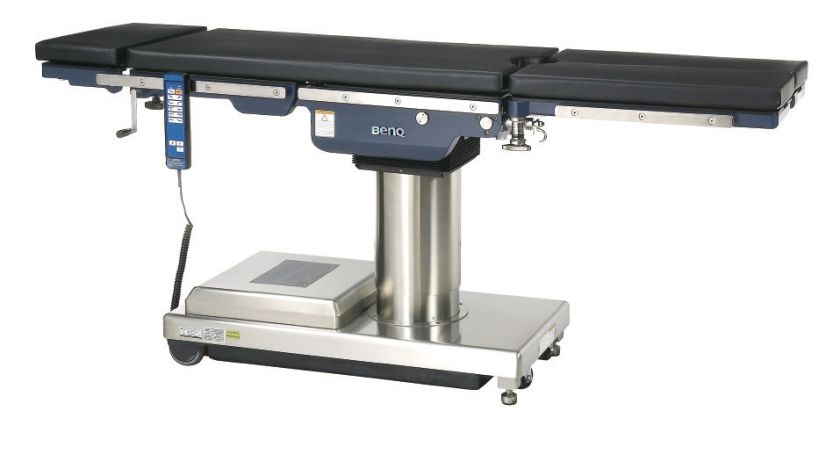

Elektro-hydraulischer OP Tisch Elektro-hydraulischer OP-Tisch (520 x 2,000 mm) mit verstellbarer Tischhöhe von 530-1,010 mm und Längsverstellbarkeit von 300 mm. Basismodell.
 |
Gratis Versand innerhalb Deutschlands Um unseren Preis noch attraktiver zu machen, entfallen für diesen Artikel die Versandkosten innerhalb Deutschlands! → Internationale Lieferung |
Auftragsfertigung
The exceptional design, high quality and engineering excellence of Dr. Max 5800 series surgical tables not only satisfy customers’ expected reliability, performance, safety and value, but also offer almost unlimited articulations. Basic model.
Features
Dr. Max 5800 series provides the tabletop 300mm longitudinal slide, split leg plates and built-in kidney bridge (optional) functions to facilitate ease of use as well as shortening the process prior to surgeries. The auxiliary control (optional) has the water-resist cover to protect all the control switches on the table base. All function buttons on the hand control panel have internationally recognized symbols for all functions to allow easy identification. The DC battery power supply system (optional) under fully charge will be able to supply about 60-80 operations during general operating usage.
 |
 |
|
| Self-compensating Floor Locking System |
Auxiliary Control (optional) |
Applications
Technical Specification
|
Model
|
Dr. Max 5800 Series
|
|
Tabletop length (w/ head rest) [mm]
|
2,000
|
|
Tabletop width (w/o side rails) [mm]
|
520
|
|
Tabletop height (up/down, w/o pad) [mm]
|
530-1,010
|
|
Head rest (up/down)
|
60° / 90°
|
|
Back plate (up/down)
|
80° / 30°
|
|
Leg plates (up/down)
|
30° / 90°
|
|
Leg plates (horizontal positioning)
|
0°-30°
|
|
Trendelenburg/Reverse Trendelenburg
|
30° / 30°
|
|
Lateral tilt (left/right)
|
24° / 24°
|
|
Flex/Reflex
|
210° / 110°
|
|
Tabletop longitudinal sliding [mm]
|
300
|
|
Max. Patient weight [kg]
|
273
|
Further Information
Detailed specification on request.
Brochures
Product Overview OR Equipment BenQ View and print brochure in fullscreen |
|
 Download brochure as PDF |
Certificates
 |
 |
 |
 |
 |
| Artikelnummer | 1-021417-0812-201 |
|---|---|
| Lieferzeit | 4-5 Wochen bzw. 10 Tage bei Eilzuschlag |
| Name: | BenQ |
| Adresse: | 7F, 46 Zhou-z St., Neihu Dist. |
| PLZ: | 11493 |
| Stadt: | Taipei |
| Land: | Taiwan |
| Ansprechpartner: | Aileen Lin |
| E-Mail Ansprechpartner: | Aileen.PL.Lin@BenQMedicalTech.com |
| Telephone: | +886-2-8797 Ext. 5833 |
| Hersteller nach GPSR: | BenQ Medical Technology Corporation |
